BOE240000

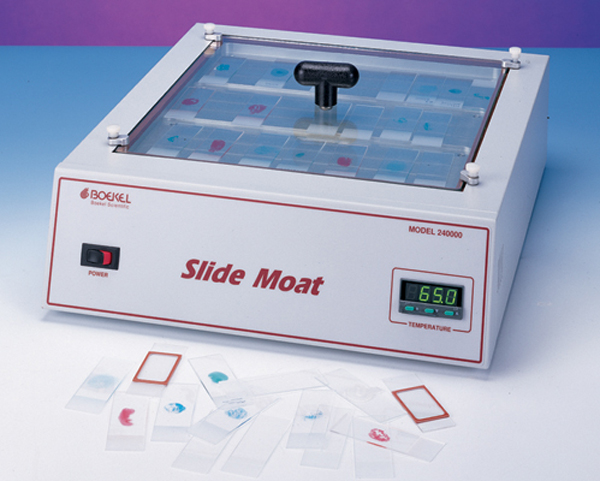

Slide Moat

Boekel Slide Moat Series

Features:

• PID temperature controller for easy temperature selection
• Tempered glass lid which seals with integral gasket on heating base
• Capacity for 30 standard microscope slides
• Optional light shield for photosensitive reagents is available
• Excellent temperature uniformity and stability
• 2 year warranty



Applications:

• In situ hybridization
• All single temperature microscope slide incubation procedures
• Slide warming and drying
• Immuno-histochemistry
• FISH
• Histology and Hematology

Available Models:

Product Code	Description
BOE240000	Slide Moat, 115 Volt AC Power, 60 Hz, Each

Included with Purchase:

• 1 x Boekel Slide Moat
• 1 x Power Cord & Manual



Accessories:

Product Code	Description
BOEC1303205	Light Shield Cover, Each

Specifications:

Catalogue #	BOE240000
Temperature Range	Ambient +5° - 100° C
Accuracy	± 0.2° C
Heat Up Rate	Ambient - 65° C in 20 Minutes
Slide Capacity	30 - 1" x 3" (three rows of ten slides)
Clearance Between Lid and Slide Pedestal	0.48 Inches, 1.0 cm
Overall Dimensions (W x D x H)	16 x 13 3/4 x 5 3/4 Inches, 40.6 x 34.9 x 14.6 cm
Shipping Weight	23 lbs, 10.4 kg
Electrical	115 V AC-Power, 60 Hz
Warranty	2 Years
