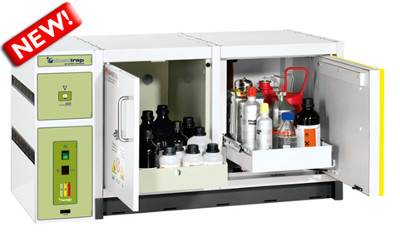

Captair ChemTrap Stand Alone Filtration System for Safety Cabinets
Overview
ChemTrap filters the air from a safety/acid cabinet's internal chamber. It captures and retains toxic fumes, and returns clean air back to the laboratory.
Designed as a standalone system with no need for ducting, it is equipped with an adjustable pipe that accommodates connection points from the side or back of your existing cabinet.
Compatible with a wide range of safety cabinet brands: Asecos, Duperthal, etc.*
Benefits
User protection
The ChemTrap filtration system eliminates noxious vapors generated by chemicals stored in a safety or acid cabinet.
Simple and easy
No ducting is needed; a simple and fast connection with a universal pipe fitting.
Laboratory air purification
ChemTrap filters the air from a safety/acid cabinet's internal chamber, captures and retains toxic fumes, and returns clean air back to the laboratory.
Features
1 – Sampling port
For filter saturation test
2 - Alarm
Audible alarm in case of fan failure
3 - Filter safety
Visual alarm to be sure your filters are at optimal performance
Available Models
|
Product Code
|
Description
|
|
CAPTAHTrap
|
CaptAir Chem Trap Stand-Alone Ductless Filtration System for Vertical Fire Proof Cabinet, Each
|
|
CAPTAVTrap
|
CaptAir Chem Trap Stand-Alone Ductless Filtration System for Under-Bench Fire Proof Cabinet, Each
|
Once a model code has been selected, please add the version code. For example, CAPTAHTrap – 04. Please see table below for version options
|
Version Code
|
Description
|
|
01
|
Sampling probe
|
|
02
|
Sampling probe plus Fan failure
|
|
03
|
Sampling probe plus Fan failure plus Securifilter
|
|
04
|
Sampling probe plus Securifilter
|
Definitions of versions
Sampling Probe – for filter saturation test
Fan Failure – Alarm used to monitor proper functioning of the ventilation system
Securifilter – Electronic alarm to detect filter saturation by solvents
Included with Purchase
1 x Captair ChemTrapTM Unit
1 x Power Cord & Instruction Manual
Types of Filters Available
|
Model
|
Description
|
|
AS - type
|
For storage with most organic vapours
|
|
BE - type
|
For storage with most organic vapours and acids
|
|
HP - type
|
HEPA H14 for storage of powders
|
Specifications
|
|
CAPTAHTrap
|
CAPTAVTrap
|
|
Number of filters
|
1
|
2
|
|
Number of fans
|
1
|
1
|
|
Air Flow
|
75 m2 / h
|
> 50 m2 / h
|
|
Voltage
|
230V / 50 Hz
|
|
Electric Power
|
19 Watts
|
|
Absorbed intensity
|
0.1 amp
|
|
Flexible Duct Connection
|
1 meter long x 80 mm diameter
|
|
Flexible Connecting Flange
|
75 or 80 or 100 mm diameter
|
|
Structure
|
CAPTAHTrap
|
CAPTAVTrap
|
|
Dimensions (W x D x H)
|
390 x570 x267 mm
15.3 x 22.5 x 10.5 inches
|
200 x 553 x 587 mm
8 x 21 x 23 inches
|
|
Metallic Parts
|
Anti-corrosion steel coated with 100% polyester
|
|
Filtration Module
|
Injected polypropylene
|
|
Duct Connection
|
PVC
|
 |
|
|
 |
|
